Ogawa Active XL 3D Massage Chair
HSA/FSA eligible — pay with pre-tax dollars.
Showrooms in San Jose and Pleasanton
Questions? Talk to a chair specialist · +1 669 214 8889
- 2-year warranty — manufacturer-backed coverage
- Extended factory warranty available
- Price-match promise — authorized-dealer pricing on identical chairs
Authorized dealer
House of Massage Chairs · Ogawa Active Series
The Ogawa Active XL 3D massage chair puts body fit first: a 23″ seat, 23″ shoulder area, a 5′0″–6′4″ published height range, and an adjustable 3D massage system built for everyday control.
01 · In One Minute
Built around room to fit, not feature count.
In brief
The Ogawa Active XL 3D is a roomier single-mechanism chair built around fit. At the current $3,299 price, it combines 3D IntelliGlide motion on an SL-Track, body scanning, a 23″ seat and shoulder area, 30 air cells, foot rollers, three heat zones, zero gravity, and a wired touchscreen. Its tradeoff: it is not Ogawa's dual-mechanism step-up, and current sources disagree on automatic-program count, so confirm that count on the current controller.
Roomier fit
A 23″ seat and 23″ shoulder area give the Active XL 3D more physical room than many conventional chair shells.
3D control
The 3D IntelliGlide mechanism uses a 3-inch massage node with adjustable speed and intensity for a more tunable feel.
SL-Track
L-Curve track geometry carries the roller path from the back into the seat area while following the seated shape of the body.
Lower body
Foot rollers, automatic leg extension, and air compression make calf and foot contact part of the daily decision, not an afterthought.
Heat
Published heat zones cover the lumbar, seat, and legs for comfort-focused warmth during a session.
Controls
A wired touchscreen, armrest quick controls, Bluetooth audio, and USB Type-C charging keep frequent adjustments close at hand.
02 · Anatomy of the Active XL
Five systems. One chair.
See what changes the daily experience.
- 01
- 02
- 03
- 04
- 05
Fig. 01 — 3D IntelliGlide + SL-Track
The Massage Path
Adjustable depth, carried through an SL-Track.
Ogawa's 3D IntelliGlide, also called 3D Vario Motion, uses a 3-inch massage node on an SL-Track. Adjustable speed and intensity let the user tune roller contact.
- Mechanism3D IntelliGlide / Vario Motion
- Node3-inch massage node
- TrackSL-Track / L-Curve technology
Why it mattersUse 3D adjustment to find a repeatable pressure preference, not as a badge.
The Fit System
The scan starts the session. The shell still has to fit.
Automatic body scanning helps set roller position. The physical fit facts are a 23″ seat, 23″ shoulder area, 5′0″–6′4″ published height range, and 320 lb capacity. Verify shoulder, calf, and foot placement in person.
- Seat width23 inches
- Shoulder width23 inches
- Published height range5′0″–6′4″
Why it mattersA larger shell reduces squeeze; it does not guarantee correct roller placement.
The Lower Body
Thirty air cells, five levels, and active foot contact.
Thirty air cells provide five compression levels. Foot rollers work under the soles, while automatic leg extension and detection position the lower body. Check whether calf and foot contact lands correctly for you.
- Air system30 cells · 5 intensity levels
- Foot systemSole rollers
- Leg fitAutomatic extension / detection
Why it mattersCalf compression and foot-roller placement are fit-sensitive; verify both seated.
The Recline
Warmth and recline, with six inches to plan.
Heat is published at the lumbar, seat, and legs. Zero gravity changes the reclined body angle, while placement requires 6″ of wall clearance.
- HeatLumbar · seat · legs
- ReclineZero gravity
- Wall clearance6 inches
Why it mattersRecline only helps if the room can accommodate it comfortably.
The Controls
Two ways to adjust without overthinking the session.
A wired touchscreen handles the full interface, while armrest buttons cover frequent adjustments. Bluetooth and USB Type-C add convenience. Six techniques and three custom programs are consistently published; confirm the automatic-program count on the current controller.
- Primary controlWired touchscreen
- Quick controlArmrest buttons
- ConnectivityBluetooth · USB Type-C
Why it mattersFast access to preferred intensity matters more than a long unused program list.
03 · The XL Difference
The feature you notice before the rollers move.
The defining story of the Active XL 3D is not that it has more technology. It is that the chair gives the body more room before the massage even begins. A 23″ seat and 23″ shoulder area change the first impression for buyers who feel crowded by narrower shells.
That extra room is only useful if the massage still lands correctly. The right test is fit plus contact: shoulder scan position, lumbar roller placement, calf compression, foot-roller location, and whether the automatic ottoman reaches the user naturally.
- i.Seat23″ published width
- ii.Shoulders23″ published width
- iii.Height5′0″–6′4″ published range
- iv.Capacity320 lb maximum
- v.OttomanAutomatic leg extension
Fit numbers are a screening tool, not a promise of comfort. If you are near either end of the published height range, have broad shoulders, or are particularly sensitive to calf or foot pressure, compare the chair in person and contact us to confirm current showroom availability.
04 · Body Fit
Five checks before the chair earns a place at home.
Several physical limits are published, which makes fit-first shopping easier. Use them to shortlist, then verify what dimensions cannot answer.
Compare fit in person →Start with 5′0″–6′4″.
HMC and Ogawa publish this range. Users near either endpoint should verify shoulder scan placement and footrest reach.
Use the 23″ seat and shoulder area as real measurements.
The wider shell is the model's clearest fit advantage. Check arm, shoulder, and hip comfort seated naturally.
Let the ottoman find you, then judge contact.
Automatic leg extension helps with length. Still verify calf pressure and sole-roller placement.
Adjust the 3D system, not just the program.
Adjust roller speed, intensity, and the five air levels. Confirm the range includes your normal preference.
Have both users run the scan.
For shared use, repeat the fit check for each person; shoulders, calves, and feet can differ sharply.
05 · Daily Feature Index
Feature first. Then what it changes.
Verified Active XL 3D features, translated into the ownership difference they create.
Changes roller depth and feel so the massage can be tuned beyond a fixed 2D path.
Extends roller travel into the seat area while following the body's seated curve.
The contact surface helps shape how focused roller pressure feels.
Sets the starting roller position around the seated user.
Adds adjustable compression; air pressure remains a separate fit decision.
Adds active sole contact rather than relying only on compression around the lower legs.
Places comfort-focused warmth across three daily-use zones.
Changes body angle; the room still needs 6″ wall clearance.
Helps the ottoman adapt to leg length before you judge calf and foot contact.
Provides the full interface without requiring a phone.
Keeps common adjustments within reach.
Adds audio playback and convenient charging without changing the core massage decision.
Provides technique variety; three custom programs are verified, while automatic-program count needs confirmation.
06 · In Your Home
Room fit is part of product fit.
of wall clearance is the published planning number. The Active XL 3D is 60.6″ long upright and 73.6″ long reclined, so plan the final reclined footprint rather than the showroom footprint.
Dimensions
Upright: 60.6″ L x 30″ W x 46.8″ H. Reclined: 73.6″ L x 30″ W x 35″ H. Net chair weight: 202.8 lb.
Finishes

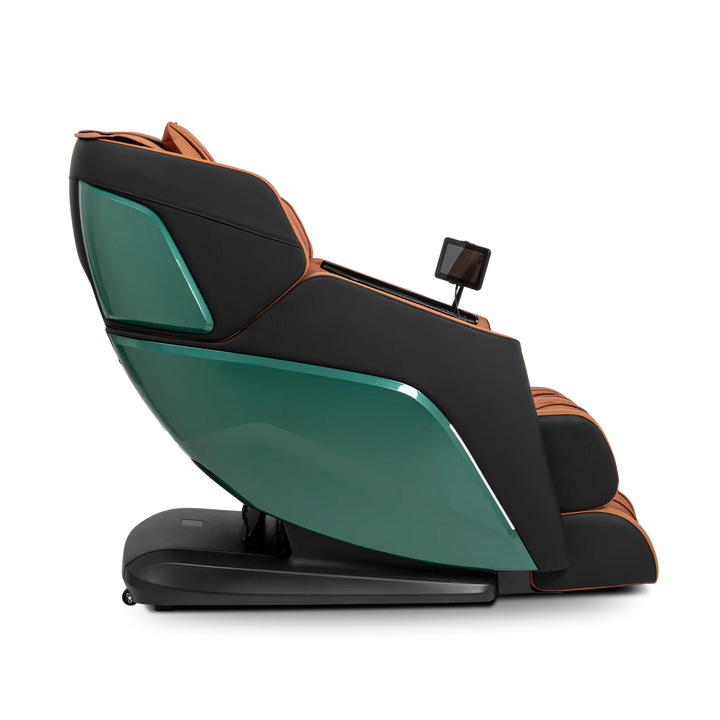

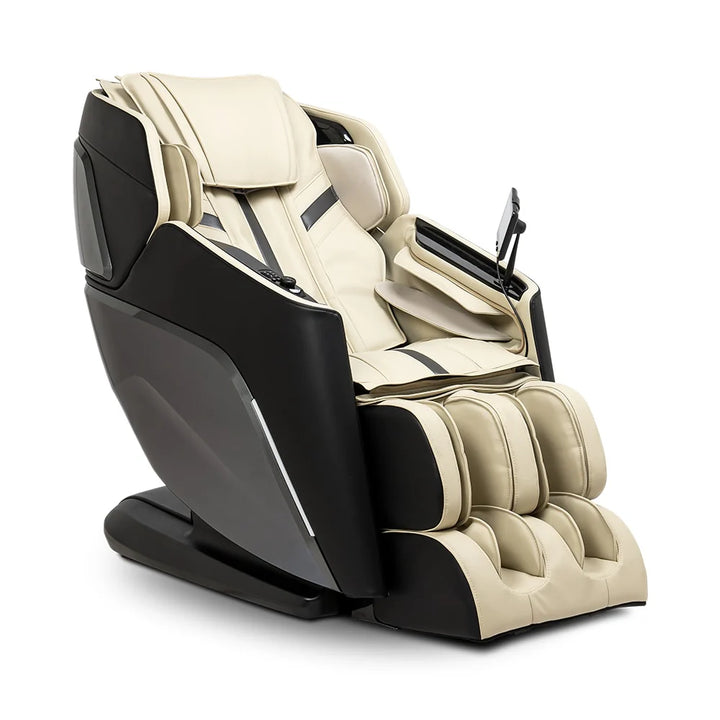

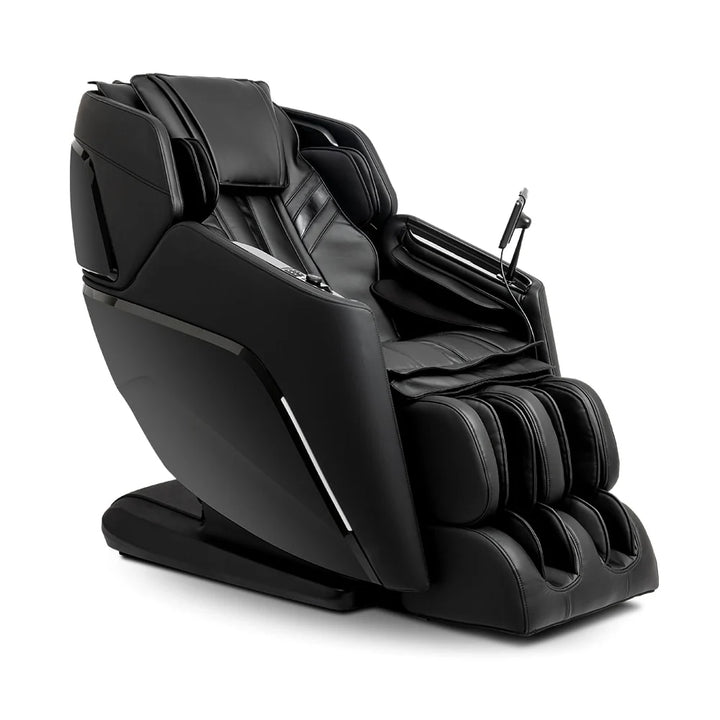

- Black
- Gun Metal / Brown
- Gun Metal / Ivory
- Green / Cappuccino
These are the current HMC product variants; finish availability can change by inventory.
Delivery path
The 30″ product width is useful for planning, but it is not a doorway guarantee. Measure the narrowest doorway, hallway turn, stair, and destination room before delivery.
Power
Ogawa's current technical specifications list 110–120V, 60Hz operation and 120W rated power. Use a suitable household outlet and keep the power area accessible after placement.
07 · Ownership
The terms worth confirming before checkout.
Delivery
White Glove is currently included.
HMC currently includes White Glove delivery with in-room setup and packaging removal, subject to access, fitment, destination, and service availability.
Warranty
Verify the controlling written warranty.
HMC summarizes a 2-year manufacturer-backed warranty. Ogawa publishes a 5-year limited structure: one year in-home labor, two years parts, five years framework. Because the presentations differ, confirm the written warranty governing your order.
Support
Keep exact-model questions exact.
Ask HMC to confirm the program library, color inventory, delivery access, and warranty document for this exact model. Use the showroom to verify fit.
The Active XL 3D is a comfort and relaxation product. Heat, air compression, rollers, and recline are described here as massage-experience features, not as treatment for pain, injury, circulation problems, or any medical condition.
08 · The Shortlist
Who should keep the Active XL 3D on the list.
A strong fit if you…
- Want a roomier chair shell, especially the verified 23″ seat and 23″ shoulder area.
- Fall within the published 5′0″–6′4″ range and 320 lb capacity, while still planning to verify fit.
- Prefer adjustable 3D roller depth with an SL-Track rather than paying first for a dual-mechanism flagship.
- Care about foot rollers, calf compression, heat, and automatic leg extension in regular sessions.
- Want a touchscreen plus simple armrest controls for a shared household.
- Have room for a 73.6″ reclined length and the verified 6″ wall allowance.
Consider another model if you…
- Want Ogawa's dual 4D+3D massage architecture rather than a single 3D mechanism.
- Need a tighter wall fit than 6″ and would value a verified 1″ clearance option.
- Prefer a narrower seat shell and fit comfortably inside a 21.3″ seat.
- Want a more automation-heavy step-up model with a larger published automatic-program library.
- Cannot verify delivery access for a 30″-wide, 202.8 lb chair.
Comparison Handoff
The same-brand step up changes the philosophy.
The closest alternative is the Master Drive Duo. The Active XL 3D prioritizes a roomier shell and simpler 3D architecture; the step-up model moves toward dual mechanisms, tighter wall clearance, and more automation.
| Decision point | Active XL 3D | Master Drive Duo |
|---|---|---|
| Massage architecture | Single 3D IntelliGlide / Vario Motion mechanism | Dual 4D+3D mechanism |
| Published body fit | 23″ seat; 5′0″–6′4″ | 21.3″ seat; 5′2″–6′1″ |
| Air compression | 30 airbags / 5 levels | 32 airbags / 3 levels |
| Wall clearance | 6″ | 1″ |
| Net chair weight | 202.8 lb | 273.6 lb |
Specification Index
The verified record, with conflicts flagged.
Identity & commerce
Body fit
Dimensions & placement
Massage system
Air, heat & lower body
Controls & convenience
Electrical & safety
Finishes & ownership
Two current-source conflicts deserve a direct check before purchase: automatic-program count, and the way warranty coverage is summarized by HMC versus Ogawa. Ask HMC to confirm the current controller/firmware program library and provide the written warranty that will apply to your order.
Exact-Model Questions
What buyers should verify before choosing the Active XL 3D.
What is the current price of the Ogawa Active XL 3D?+
The current HMC product page lists the Ogawa Active XL 3D at $3,299.00 with a $5,999.00 compare-at price. Pricing can change, so the live price shown in the purchase area above should govern checkout.
What are the dimensions and wall-clearance requirements for the Active XL 3D?+
The chair is 60.6″ L x 30″ W x 46.8″ H upright and 73.6″ L x 30″ W x 35″ H reclined. Published wall clearance is 6″. Measure the full delivery path as well as the final room before scheduling delivery.
What user height and weight range is published for the Ogawa Active XL 3D?+
HMC and Ogawa publish a 5′0″–6′4″ height range and 320 lb capacity. Seat and shoulder areas are 23″ wide. Users near the limits should verify shoulder, calf, and foot placement in person.
What massage mechanism and track does the Active XL 3D use?+
It uses Ogawa's 3D IntelliGlide / 3D Vario Motion with a 3-inch node on an SL-Track / L-Curve. Automatic body scan sets the starting position; speed and intensity are adjustable.
What warranty and delivery terms apply to the Active XL 3D?+
HMC currently includes White Glove delivery, subject to its delivery terms. HMC summarizes a 2-year manufacturer-backed warranty; Ogawa publishes a 5-year limited structure with one year labor, two years parts, and five years framework. Confirm the controlling written warranty and delivery access before checkout.
What should an Ogawa Active XL 3D review help me verify?+
An exact-model review should answer what specifications cannot: whether the 23″ shell feels roomy, how 3D pressure feels, where calf and foot contact lands, whether controls are intuitive, and whether heat placement suits your routine.
Before You Decide
Fit is the specificationworth feeling.
Use a showroom visit to check the five things the spec sheet cannot settle: shoulder scan placement, usable 3D pressure range, calf compression, foot-roller position, and whether the wider shell feels supportive rather than simply spacious.
Contact us to confirm current showroom availability for the Ogawa Active XL 3D before you visit.
The Decision
Ogawa Active XL 3D.
Choose it for the room it gives you.
The case for this model is specific: a roomy 23″ seat and shoulder area, 3D adjustable massage on an SL-Track, verified lower-body features, and straightforward controls at the current $3,299 price. If those fit priorities matter more to you than a dual-mechanism step-up, the Active XL 3D deserves the final seat test.
Ogawa Active XL 3D Massage Chair · Sold by House of Massage Chairs. Current price, availability, finish inventory, delivery timing, program library, and warranty terms can change. Confirm the current purchase-area price, delivery access, program count, controlling warranty, and showroom availability before purchase.
